Index Management and Snapshot Management

Index Management

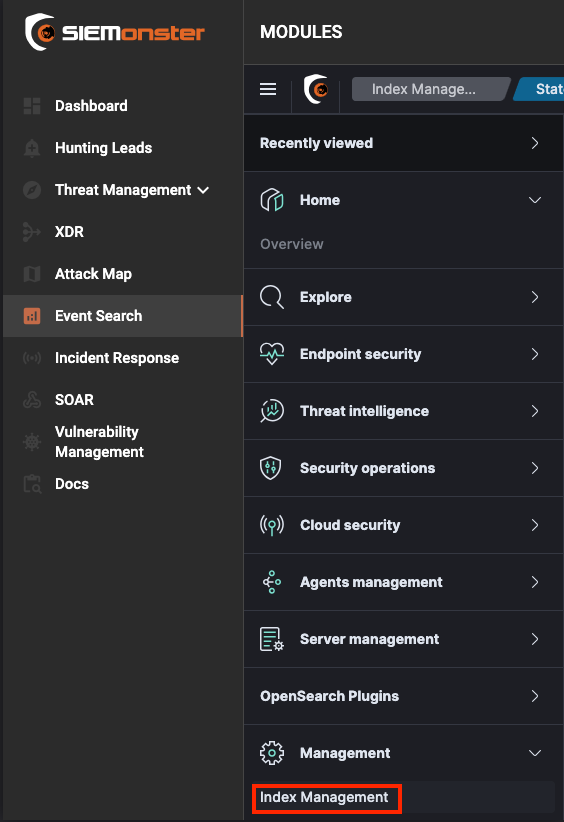

The Index Mangement component of the system administers various aspect of the the backend system relating to indexes. To access this component, Click “Event Search” then Expand the three bar menu, Expand Management and Click “Index Management”


Once the page loads you will see all options available under Index Management, which are:

  • State management indexes

  • Indexes

  • Data streams

  • Templates

  • Aliases

  • Rollup Jobs

  • Transform Jobs

  • Notification Settings


There is also a Snapshot Management section on the same page containing:

  • Snapshot policies

  • Snapshots

  • Repositories


State management policies

The state management policies section relates to policies applied to indices that will manage their states between hot, warm and cold. There are various options available in such policies that can be utilized. The most basic is controlling the hot and cold periods, where indices are migrated to cold storage for longer term preservation. This is most often required for compliance purposes.

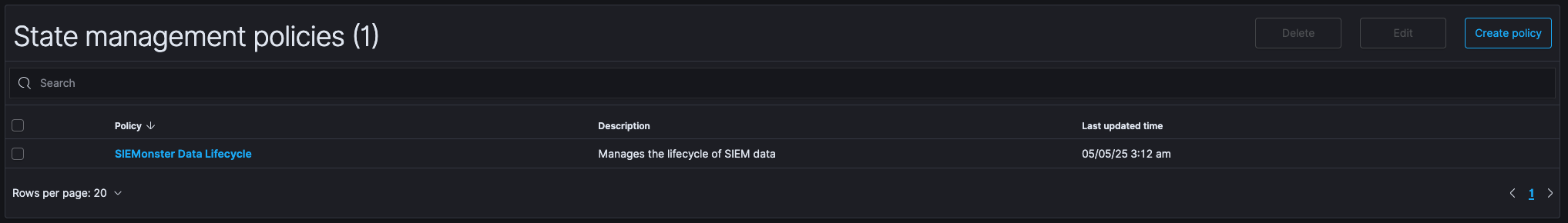

This section will list any policies currently applied and allow you to see their configuration by clicking on the blue url with the name of the policy. In the above screenshot the policy and url is “SIEMonster Data Lifecycle”

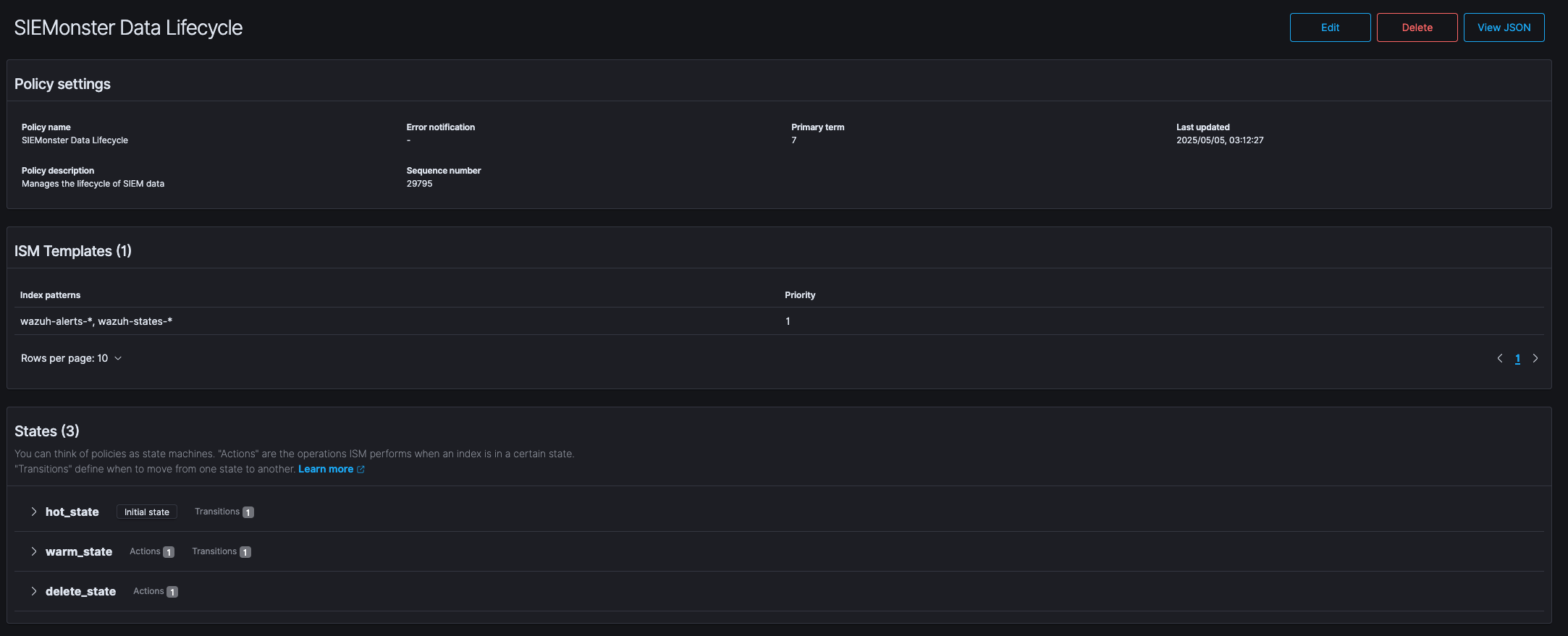

When you click on the policy it will show you the current configuration in the webui. This configuration screen consists of three sections, Policy settings, ISM templates and States.

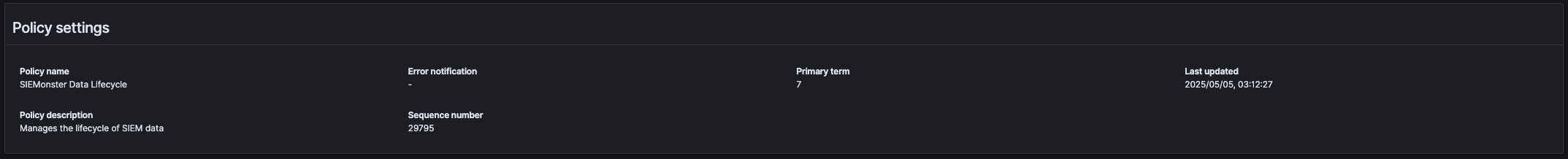

Policy Settings

The Policy Settings section shows the following information:

  • Policy Name

  • Policy Description

  • Error notifications (if an error state exists it will be flagged here)

  • Sequence Number (this is an internal reference number to OpenSearch for basic function and event tracking)

  • Priority term (this refers to the priority of the policy in case multiple policies exist)

  • Last update (the last time this policy was updated)

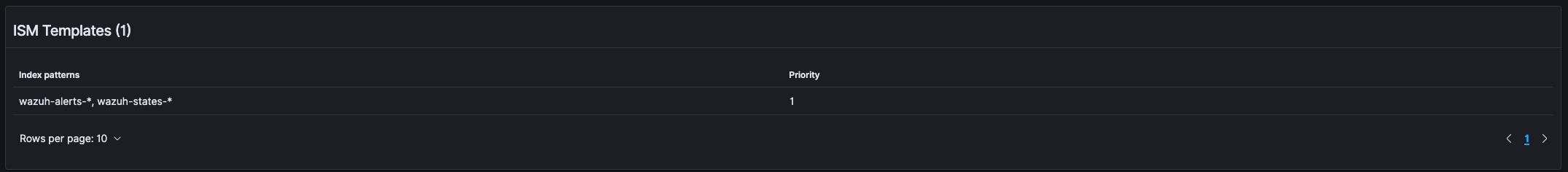

ISM templates

The ISM templates section contains the following information

  • Index Patterns (these are the index patterns this policy applies to)

  • Priority (this refers to the priority of the policy in case multiple templates exist)

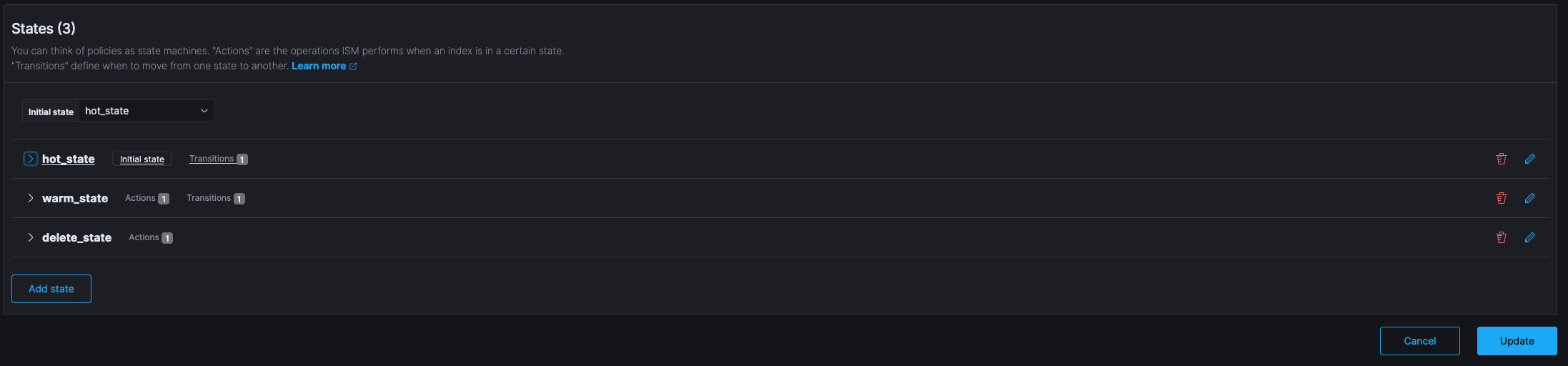

States

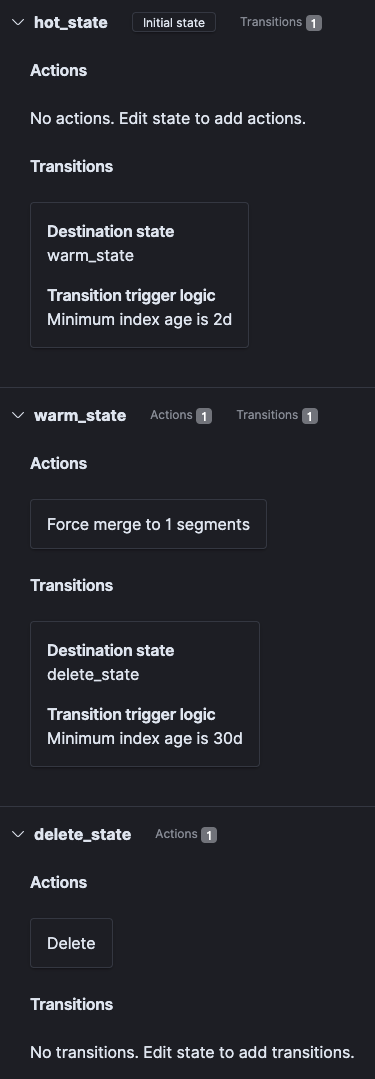

The States section shows the transition path of all states within the policy. The screenshot below indicates how the policy applies to the states of the data stored in OpenSearch in the Index Patterns indicated in the section https://siemonster.atlassian.net/wiki/spaces/current/pages/edit-v2/284590097#ISM-templates


Viewing and Editing the policy

Viewing

To view the policy Click the “View JSON” button in the top right corner of the page.


This will bring up the JSON data contained within the policy.

JSON
{
    "id": "SIEMonster Data Lifecycle",
    "seqNo": 29795,
    "primaryTerm": 7,
    "policy": {
        "policy_id": "SIEMonster Data Lifecycle",
        "description": "Manages the lifecycle of SIEM data",
        "last_updated_time": 1746407547193,
        "schema_version": 19,
        "error_notification": null,
        "default_state": "hot_state",
        "states": [
            {
                "name": "hot_state",
                "actions": [],
                "transitions": [
                    {
                        "state_name": "warm_state",
                        "conditions": {
                            "min_index_age": "2d"
                        }
                    }
                ]
            },
            {
                "name": "warm_state",
                "actions": [
                    {
                        "timeout": "2h",
                        "retry": {
                            "count": 3,
                            "backoff": "exponential",
                            "delay": "1m"
                        },
                        "force_merge": {
                            "max_num_segments": 1
                        }
                    }
                ],
                "transitions": [
                    {
                        "state_name": "delete_state",
                        "conditions": {
                            "min_index_age": "30d"
                        }
                    }
                ]
            },
            {
                "name": "delete_state",
                "actions": [
                    {
                        "timeout": "2h",
                        "retry": {
                            "count": 3,
                            "backoff": "exponential",
                            "delay": "1m"
                        },
                        "delete": {}
                    }
                ],
                "transitions": []
            }
        ],
        "ism_template": [
            {
                "index_patterns": [
                    "wazuh-alerts-*",
                    "wazuh-states-*"
                ],
                "priority": 1,
                "last_updated_time": 1746407477823
            }
        ]
    }
}

In the above policy example you will see that the warm to hot transition occurs after 2 days and when indices reaches 30 days they are deleted. As this is s a demo environment that is more than sufficient, in a production environment these will need to be adjusted based on compliance requirements. In the policy below you can see a retention of 90 days and it only applies to the indices that relates to wazuh-alerts-*

JSON
{
    "policy": {
        "policy_id": "SIEMonster Data Lifecycle",
        "description": "Manages the lifecycle of SIEM data",
        "error_notification": null,
        "default_state": "hot_state",
        "states": [
            {
                "name": "hot_state",
                "actions": [],
                "transitions": [
                    {
                        "state_name": "warm_state",
                        "conditions": {
                            "min_index_age": "2d"
                        }
                    }
                ]
            },
            {
                "name": "warm_state",
                "actions": [
                    {
                        "timeout": "2h",
                        "retry": {
                            "count": 3,
                            "backoff": "exponential",
                            "delay": "1m"
                        },
                        "force_merge": {
                            "max_num_segments": 1
                        }
                    }
                ],
                "transitions": [
                    {
                        "state_name": "delete_state",
                        "conditions": {
                            "min_index_age": "90d"
                        }
                    }
                ]
            },
            {
                "name": "delete_state",
                "actions": [
                    {
                        "timeout": "2h",
                        "retry": {
                            "count": 3,
                            "backoff": "exponential",
                            "delay": "1m"
                        },
                        "delete": {}
                    }
                ],
                "transitions": []
            }
        ],
        "ism_template": [
            {
                "index_patterns": [
                    "wazuh-alerts-*"
                ],
                "priority": 1
            }
        ]
    }
}

Editing

If you wish to edit the policy, you can click the Edit button in the top right corner.


This will prompt you to either use the “Visual editor” or the “JSON Editor”

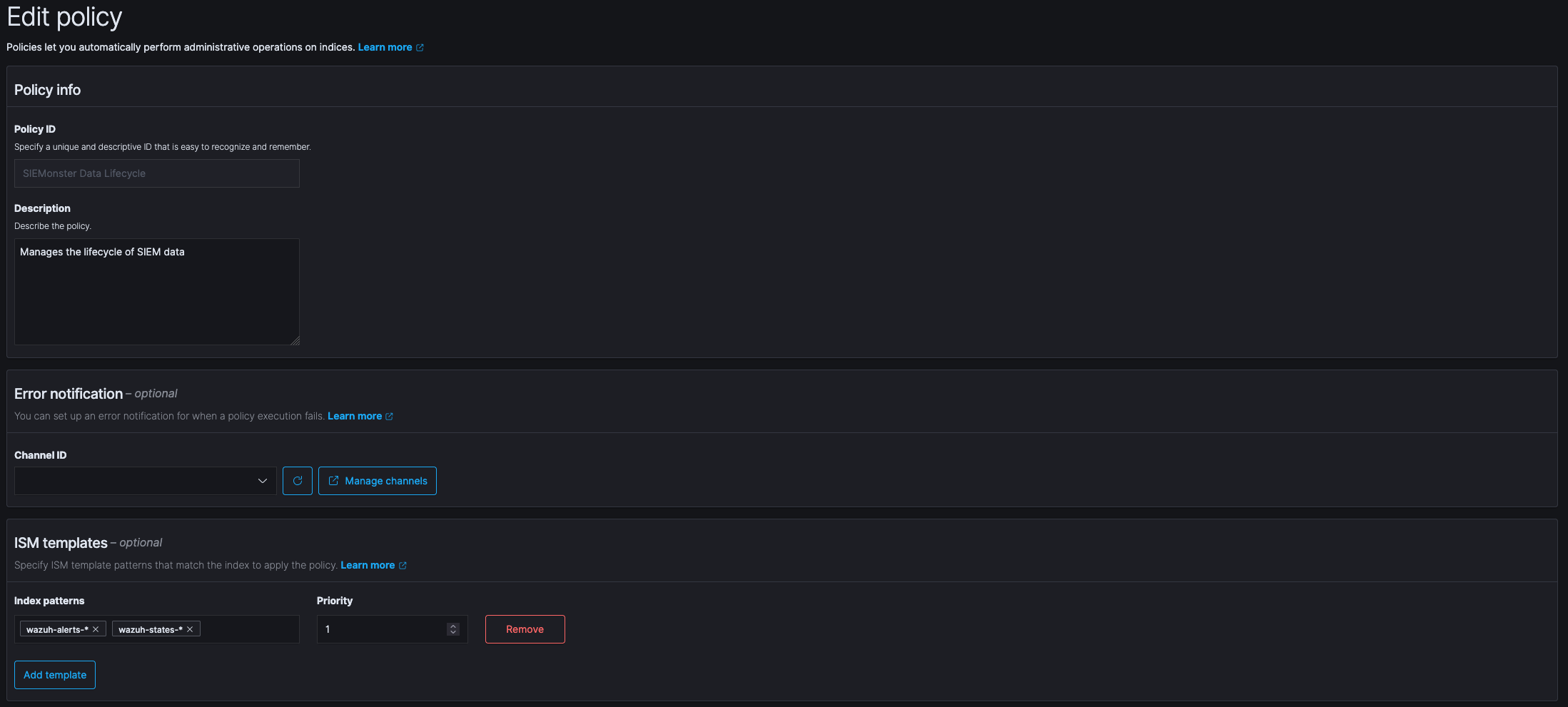

The visual editor will provide you with the following display


Within this display it is easy to add or remove additional indices to be included in the policy and to add remove states.

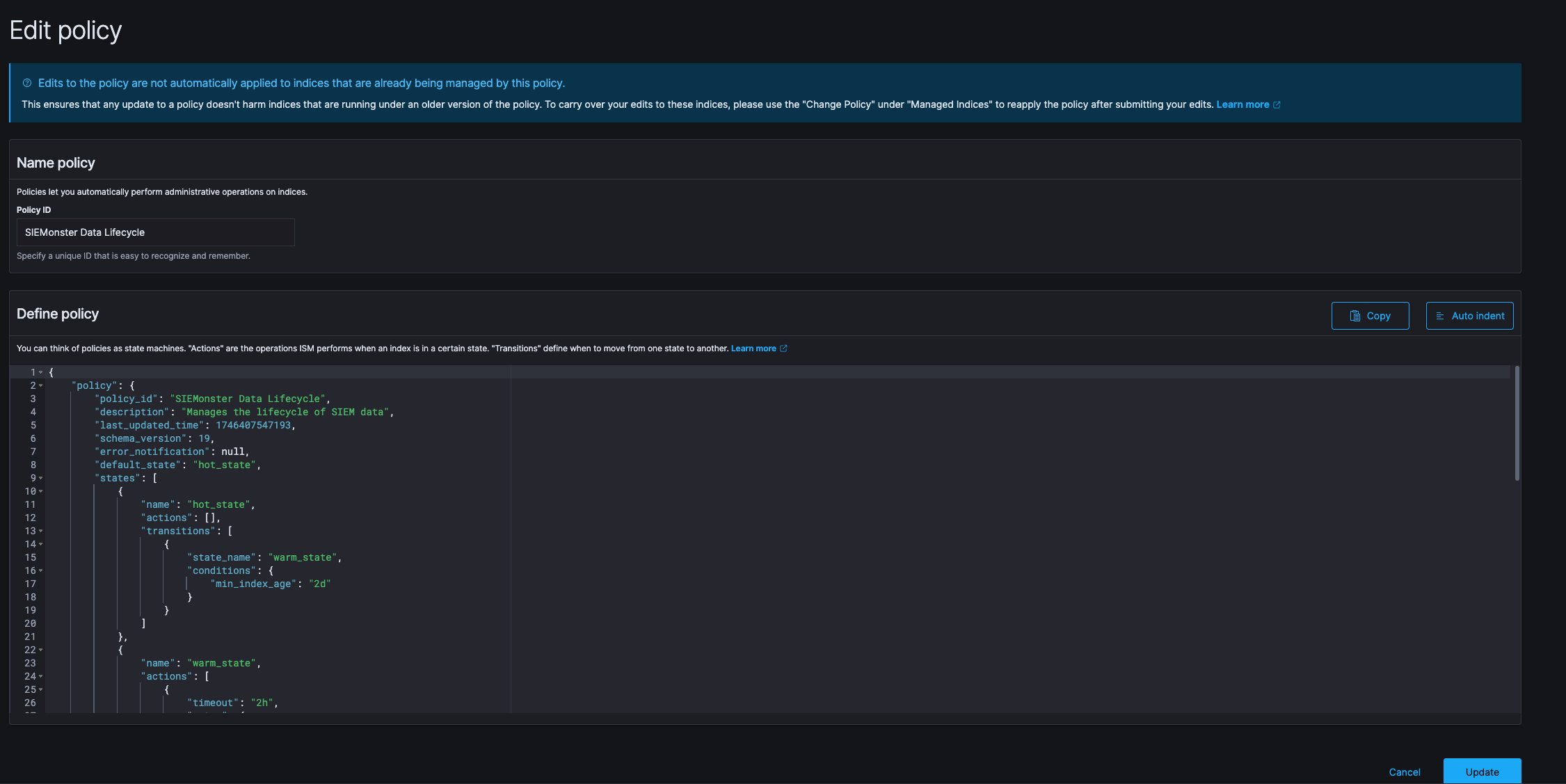

Choosing the option to use the “JSON Editor” will provide the following display

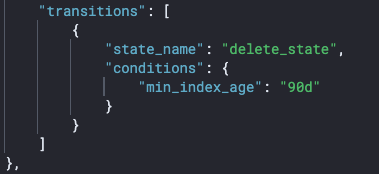

In this view you can directly edit the JSON that contains all the policy specifics including the time periods for each state. A quick change can be applied here to the “min_index_age” field that specifies how old an index should be before deletion. If you have a requirement for PCIDSS for example, you would set this to 90 days.


🔖 NOTE: It is recommended to use the SIEMonster supplied policy and only adjusting the time period before deletion. Should you require a custom policy based on other requirements it is suggested to raise a support ticket so that a policy may be generated and supplied to you for your specific needs. A misconfiguration of the policies can lead to unexpected data loss!

Further information on policies are available on the official OpenSearch documentation site at the following URL:

https://docs.opensearch.org/docs/latest/im-plugin/ism/policies/

Indexes

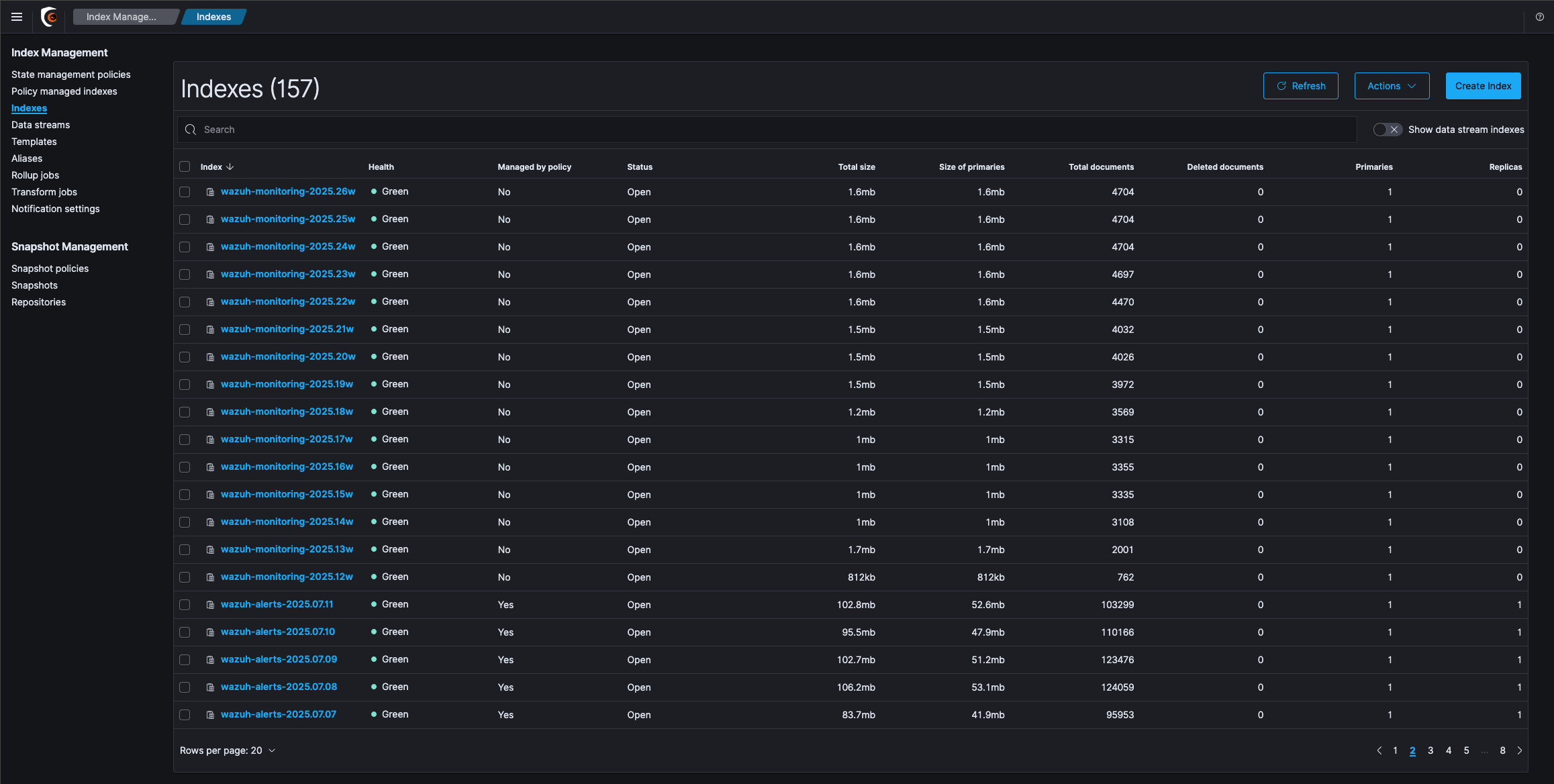

The indexes page shows all indices currently within the system in a table.

The table displays all relevant information on the indices including if they are assigned a policy to process them.


You can note in the above screenshot that t he indices that relate to wazuh-monitoring-* are not part of the policy and they have a “Managed by policy” status of no. If you want them managed by a policy you can either add their indices to an existing policy or create a policy for them based on the information supplied above.

Data streams

Data streams are not currently utilized by the default SIEMonster implementation. For more information about this function please see the official OpenSearch documentation at the following link

https://docs.opensearch.org/docs/latest/im-plugin/data-streams/

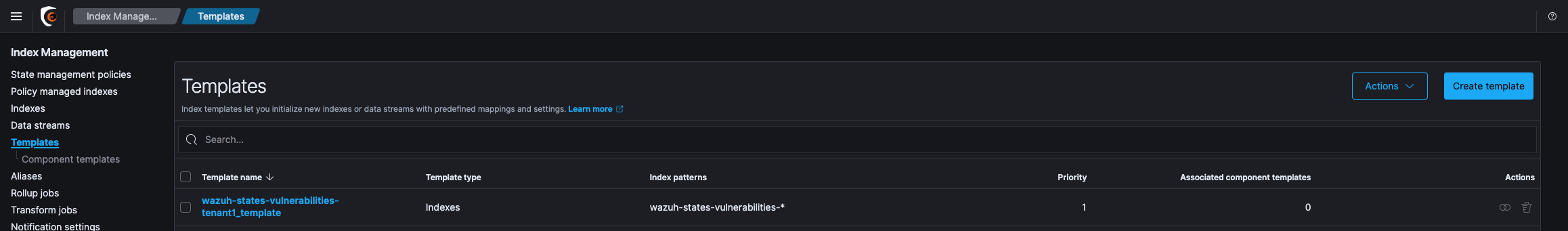

Templates

The templates section contains index templates that govern various aspects of the data stored within indices. These includes default fields and their types and also the sharding configuration covered in the preceding section locate here Index Management | Shards-and-Replicas-Background


(warning) Please take care NOT to make modification to the index templates supplied by SIEMonster unless instructed to do so by the technical team. This can have far reaching consequences on not only ingestion and search performance but could also affect data validity and retention.

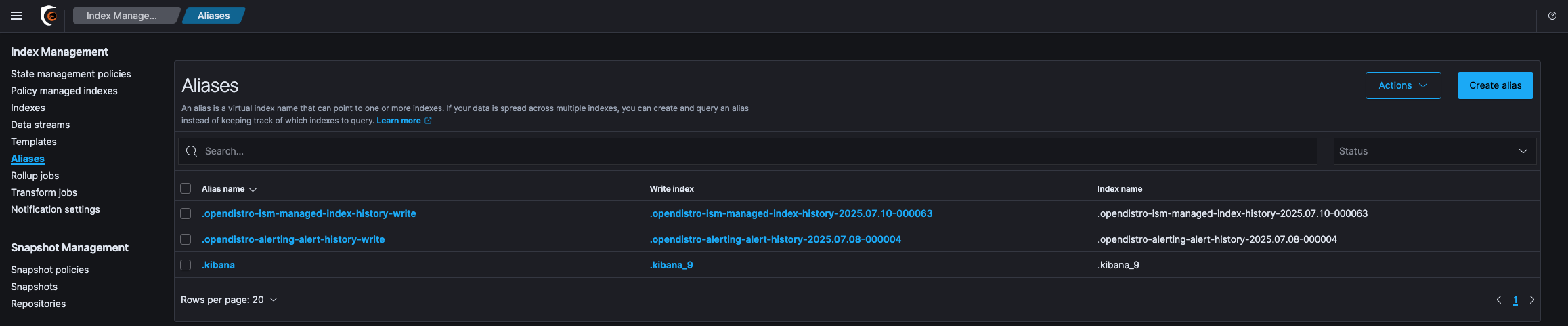

Aliases

The aliases section relates to aliases created to point to multiple indices. This only contains the default aliases created by OpenSearch and is not customized by SIEMonster.


Rollup jobs

This is not currently utilized by SIEMonster. Further information can be found at the following URL

https://docs.opensearch.org/docs/latest/im-plugin/index-rollups/index/

Transform jobs

Transform jobs are used to create summarized views of specific data based on the configuration used. This is not currently in use by SIEMonster. Further information can be found at the following URL.

https://docs.opensearch.org/docs/latest/im-plugin/index-transforms/index/

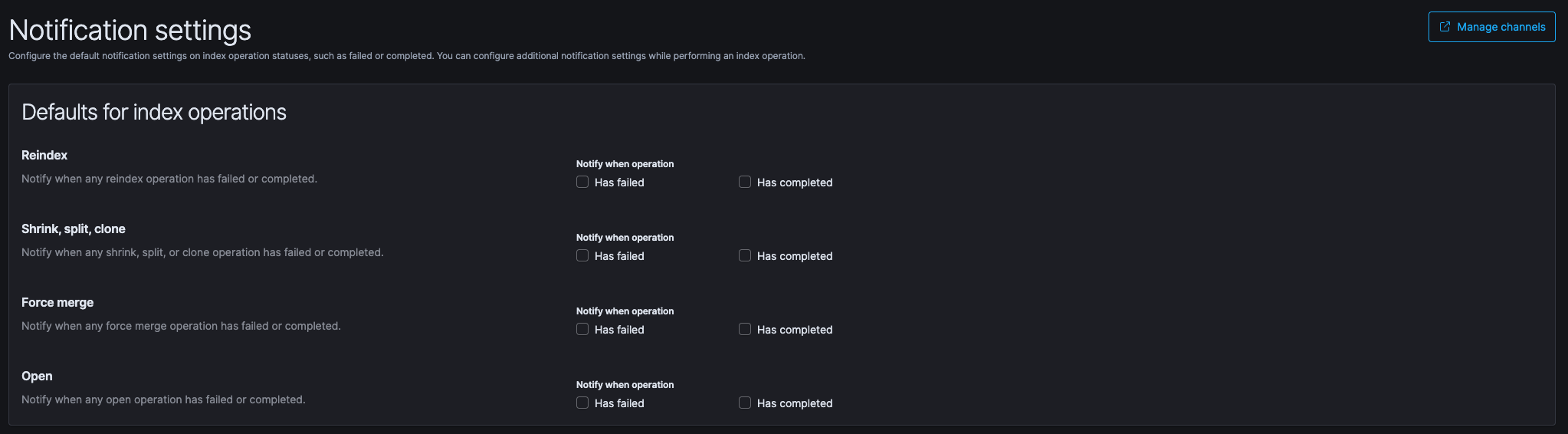

Notification settings

Notification settings can be enable to alert end users of actions being automatically taken by the system based on policies, templates and other automation built into this section.

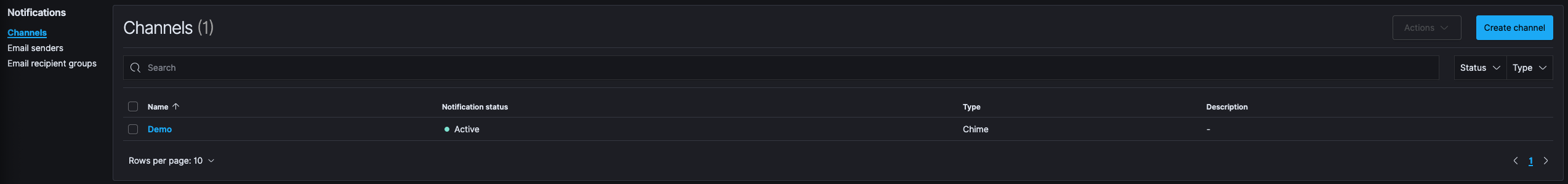

To enable any of these items you are required to configure the channel(s) for the event first. Please Click on “Manage channels” at the top right to be redirected to the channels configuration page.


The next step is to Click on “Create Channel” at the top right

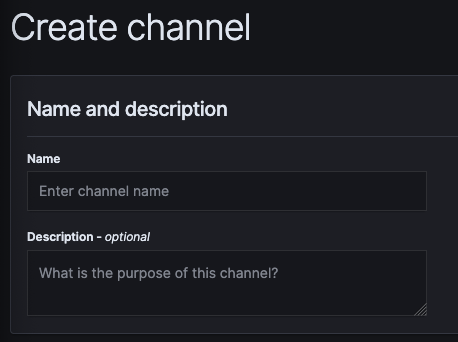

The channel will require a name and you can also add an optional description

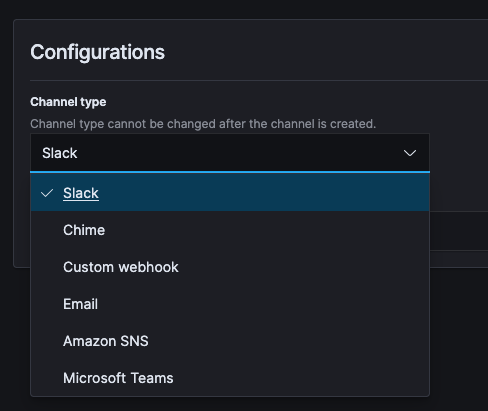

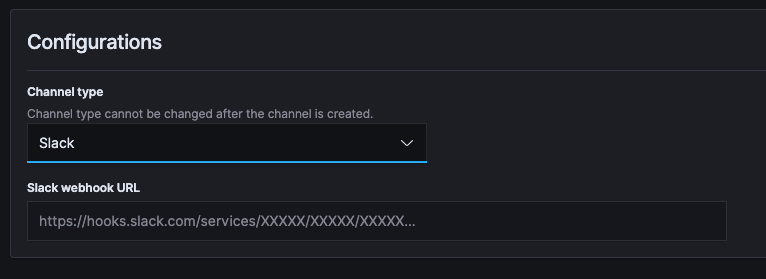

In the configuration section you need to select the type of channel you wish to use and provide it’s configuration parameters


The channels supported for alerts are:

  • Slack

  • Amazon Chime

  • Custom webhook

  • E-mail

  • Amazon SNS

  • Microsoft Teams

Each type of channel has it’s own configuration options that need to be completed.


Snapshot Management

The snapshot management section deals with the snapshot (backups) configuration of the indices. Snapshot policies govern what is backed up and how often it is backed up. On a default installation you will notice that there are already snapshots present that contain a uuid as identifier. These are snapshots created by AWS as the OpenSearch used is a managed product from AWS.


(warning) Tampering with the automated snapshots created by AWS management has the potential to leave your OpenSearch unrecoverable. Please do NOT tamper, modify or remove any of these snapshots.

Snapshot policies

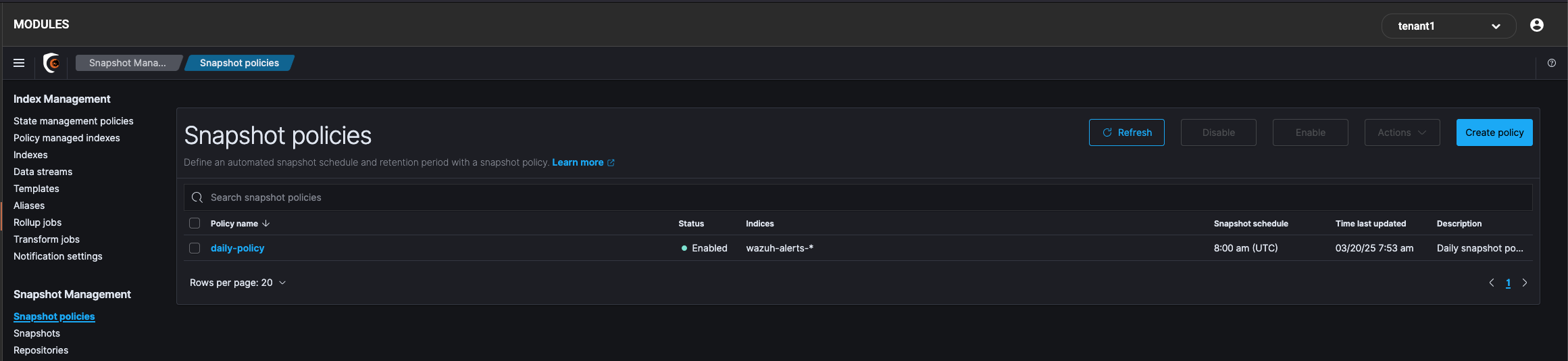

Snapshot policies is where you apply the wanted configuration for taking snapshots. On all deployments after SIEMonster V10 the snapshot policy named daily-policy should be deployed. This will ensure you have daily snapshots for restoring data.

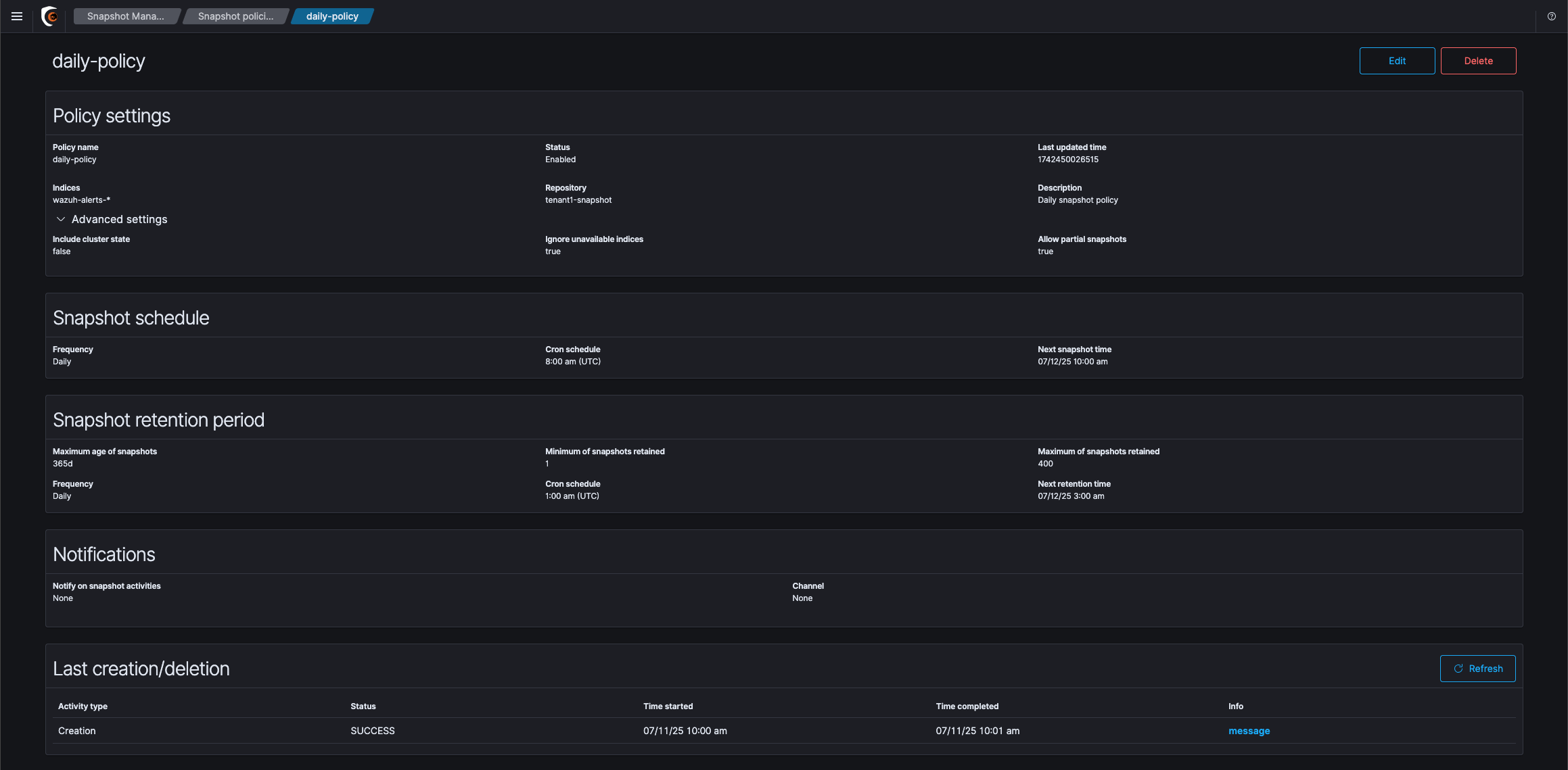

Clicking on the daily-polilcy will provide you with the following information


Editing the policy is not recommended. If you have specific requirements for the policy that is unmet by the default such as more frequent snapshots, a longer snapshot retention period etc, please contact SIEMonster Support to facilitate amending your policy.

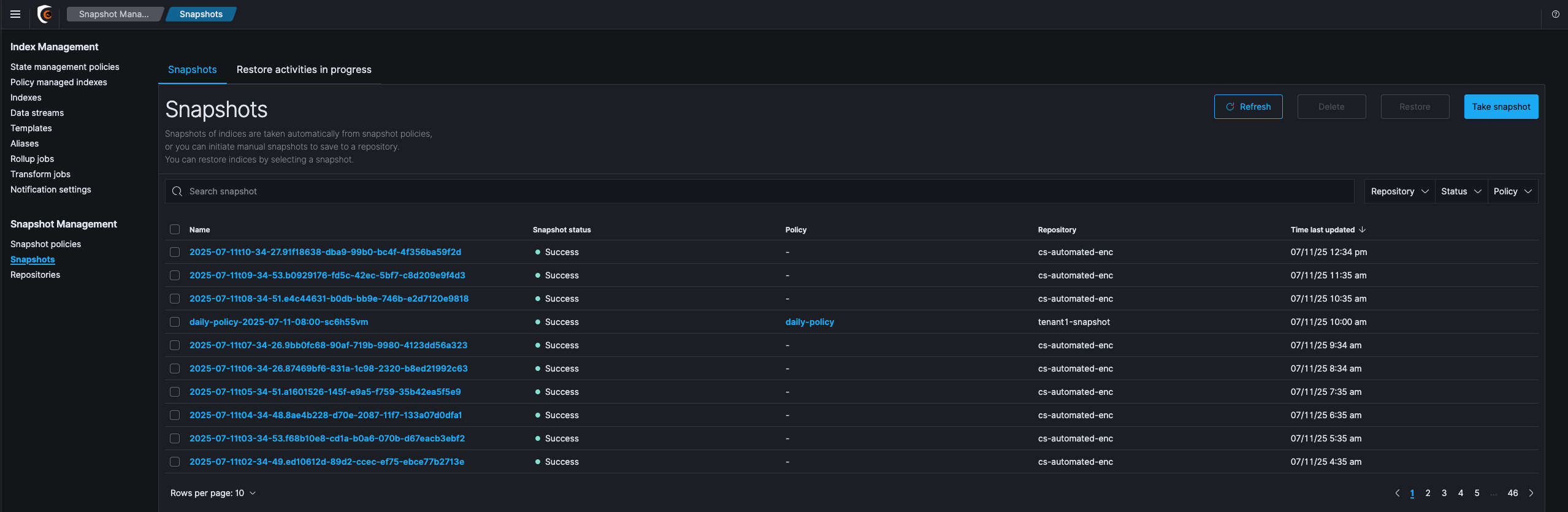

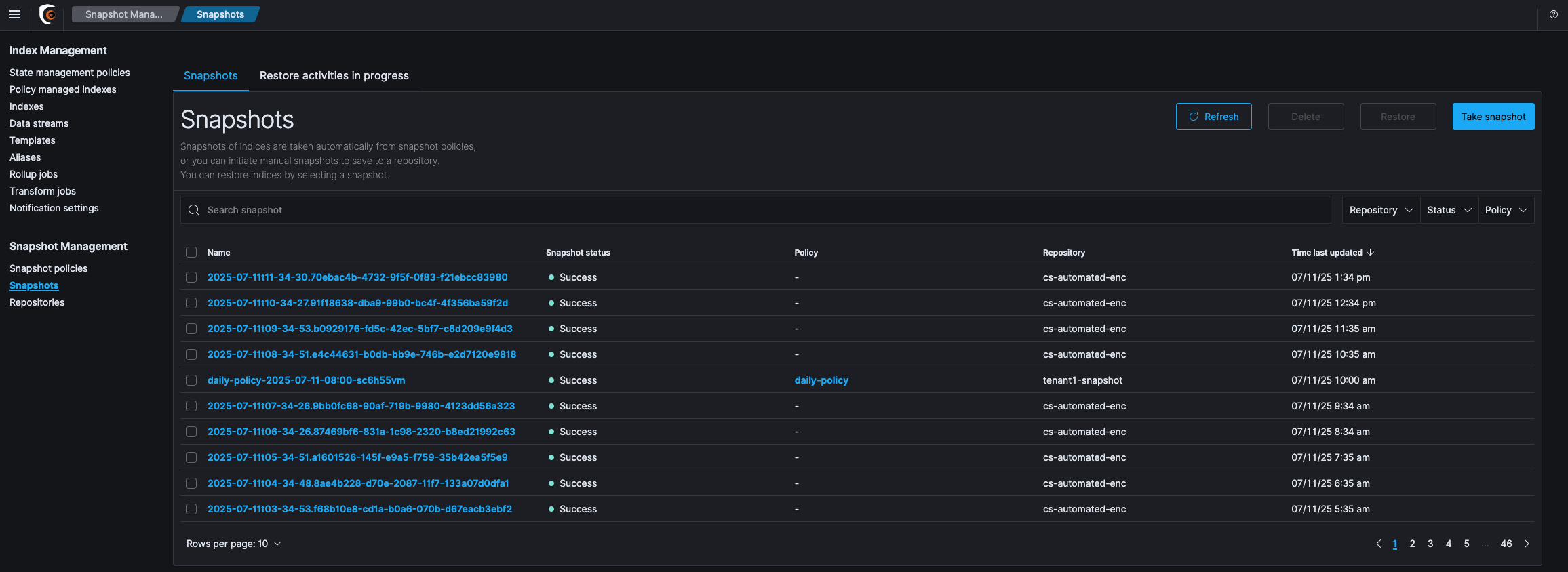

Snapshots

This section displays all the current snapshots available in the system, when they were run and if they were successful or not. Do not be concerned if the table takes a while to load if you have a higher number of snapshots as the metadata for the snapshots are read from S3 which has a slight amount of latency due to the type of storage.


Repositories

The repositories section relates to all the snapshot repository/storage configurations. Please do not modify any of the settings from the default. If you have additional needs please contact SIEMonster Support to assist with making the correct modifications.
